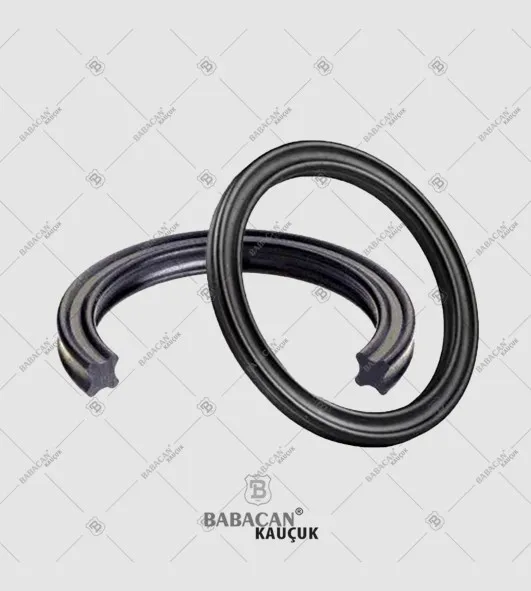

X-rings are double acting seals by elastomer materials, able to work as dynamic or static seal at many systems. It can be produced by FKM at the requirement of high temperature or chemical resistance.
Advantages
• Suitable for both static and dynamic applications
• Wide application area
• Low friction compared to o-rings
• No twisting in the housing
• Economical sealing solution for low pressure
Area of Application
• Hydraulic and pneumatic static applications
• Flanges
• Valves
• Light duty cylinders
| Tanım | Renk | Sertlik | Sıcaklık Aralığı(°C) | |
| NBR | SİYAH | 70 Shore A | -30 / + 105 | |
| Definition | Color | Hardness | Temperature Range (°C) | |
| NBR | BLACK | 70 Shore A | -30 / + 105 |
Frequently Asked Questions
Which OEM part numbers does this part replace?
Cross-reference OEM numbers vary by item. Send us the OEM part number you need and our team will confirm compatibility and the equivalent Babacan Rubber part for your application.
Is this part EN 45545-2 compliant?
For railway applications our rubber parts can be supplied in EN 45545-2 fire-and-smoke compliant compounds on request. Specify the hazard level (HL1–HL3) required for your project and we will provide a suitable formulation and documentation.
What rubber compounds and hardness options are available?
We offer NR, SBR, EPDM, NBR and silicone-based compounds, typically from 40 to 90 Shore A. We recommend the right material based on the temperature, load and oil-resistance requirements of your specific application.
Do you produce samples and series batches?
Yes. We manufacture both samples and series production at our Ostim / Ankara facility, working from a technical drawing or a sample part. Contact us through the form for a quotation and lead time for your parts.
