Conical Shock Absorbers - Konik Takoz
Conical Shock Absorbers - Konik Takoz
Conical Shock Absorbers - Konik Takoz
Conical Shock Absorbers - Konik Takoz Conical Shock Absorbers - Konik Takoz Conical Shock Absorbers - Konik Takoz Conical Shock Absorbers Conical Shock Absorbers

Conical Shock Absorbers

OEM-Compatible Replacement Made in Ostim / Ankara Worldwide shipping
Share: Link WhatsApp Email LinkedIn

Conical Shock Absorbers

Technical Specifications

Stock code


Ask a Question

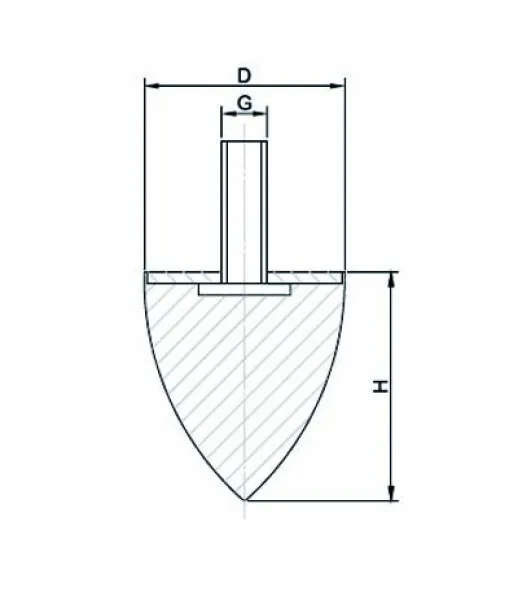

D
(mm)		 H
(mm)		 G L
(mm)		 Max. Yük (Kg)
14 10 M4 10 14
20 23 M6 18 15
20 30 M6 18 15
24 34 M6 18 16
25 19 M6 18 20
25 22 M6 18 20
25 25 M6 18 20
25 30 M6 18 20
28 23 M6 18 22
28 25 M6 18 22
30 15 M8 23 32
30 30 M8 23 32
30 33 M8 23 32
30 38 M8 23 32
32 40 M8 23 32
35 40 M8 23 33
37 35 M8 23 33
40 30 M8 23 30
40 60 M8 23 37
41 50 M8 23 37
45 40 M8 23 50
46 58 M8 23 50
50 30 M10 28 60
50 40 M10 28 60
50 50 M10 28 60
50 58 M10 28 60
50 63 M10 28 60
50 66 M10 28 60
50 67 M10 28 60
60 60 M10 28 75
65 45 M10 28 80
65 88 M10 28 80
70 50 M12 37 105
70 57 M12 37 105
72 58 M12 37 110
75 70 M12 37 110
75 90 M12 37 110
95 75 M14 37 190
95 80 M14 37 190
100 80 M16 42 190
100 83 M16 42 190
110 135 M16 47 250
115 135 M16 42 280
banner

Frequently Asked Questions

Which OEM part numbers does this part replace?

Conical Shock Absorbers is produced against OEM reference Konik Takoz. Send us the OEM part number you need and our team will confirm the matching Babacan part and its compatibility for your machine.

Is this part EN 45545-2 compliant?

For railway applications our rubber parts can be supplied in EN 45545-2 fire-and-smoke compliant compounds on request. Specify the hazard level (HL1–HL3) required for your project and we will provide a suitable formulation and documentation.

What rubber compounds and hardness options are available?

We offer NR, SBR, EPDM, NBR and silicone-based compounds, typically from 40 to 90 Shore A. We recommend the right material based on the temperature, load and oil-resistance requirements of your specific application.

Do you produce samples and series batches?

Yes. We manufacture both samples and series production at our Ostim / Ankara facility, working from a technical drawing or a sample part. Contact us through the form for a quotation and lead time for your parts.
